PCB Manufacturing Service
From PCB Prototypes to Small and Large Batch Production
— We specialize in volume manufacturing and high-performance printed circuit boards —

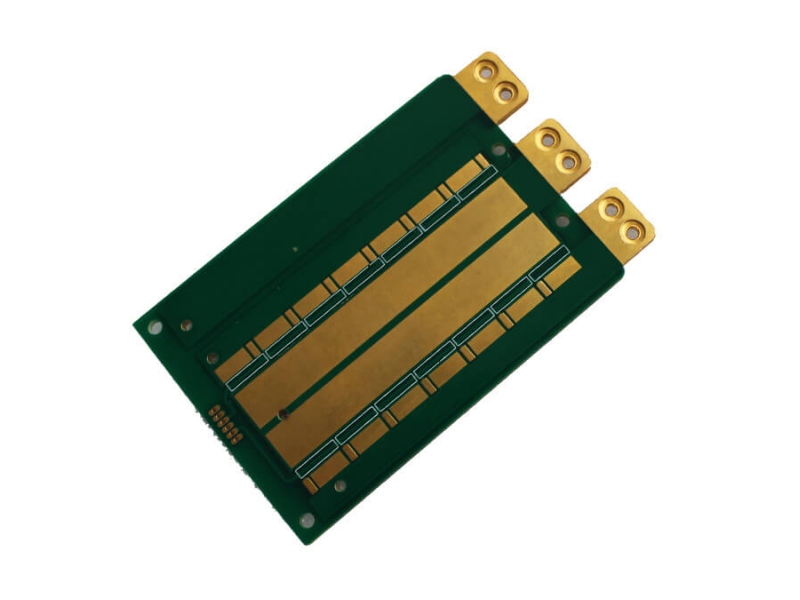

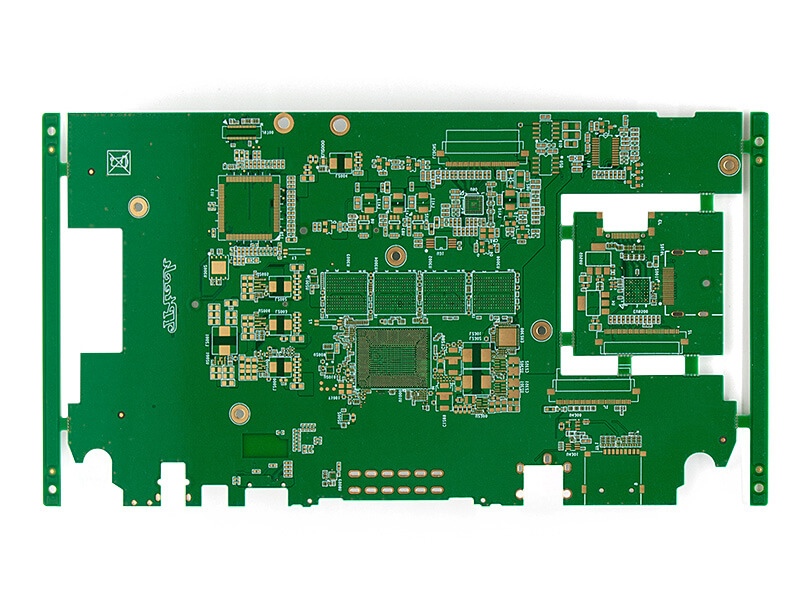

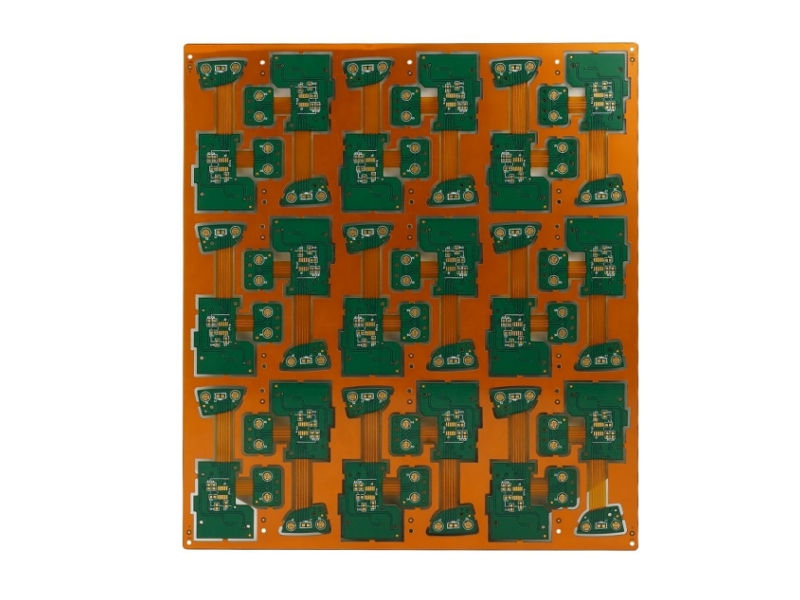

DQS offers PCB manufacturing services: Single & Multilayer PCB, HDI, Rigid, Rigid-Flex, FPC, Aluminum PCB, Heavy Copper PCB, High-Frequency PCB, etc.
We Have Professional Sales Engineers, Send Us Gerber File Or BOM List, We Will Offer You Quotation In 24 Hours.
What Standards We Follow？
• ISO 9001:2015 – Quality Management System (QMS)
• ISO 14001:2015 – Environmental Management System (EMS)
• UL certification (USA & Canada)
• IATF 16949:2016 – for PCB & PCBA in the automotive industry
• ISO 13485:2016 – for the production of printed circuit board assemblies used in medical devices
• CE certification – for PCBAs
• REACH and RoHS compliance
• UL 94V-0 flammability standard
• IPC Class II and Class III standards

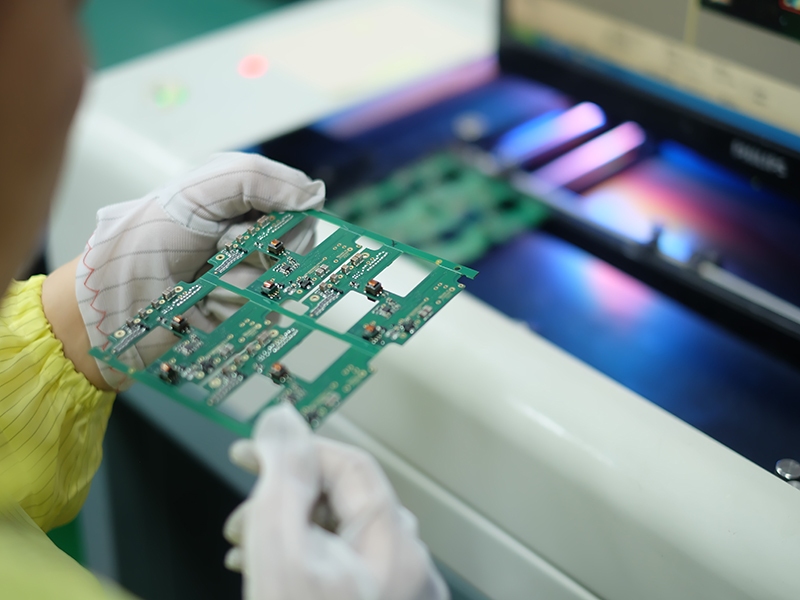

PCB Testing
To ensure accurate identification and resolution of defects or issues during PCB production, and to verify compliance with performance specifications, we offer a range of testing services. These services help improve efficiency and reduce overall costs.
Available testing methods include:

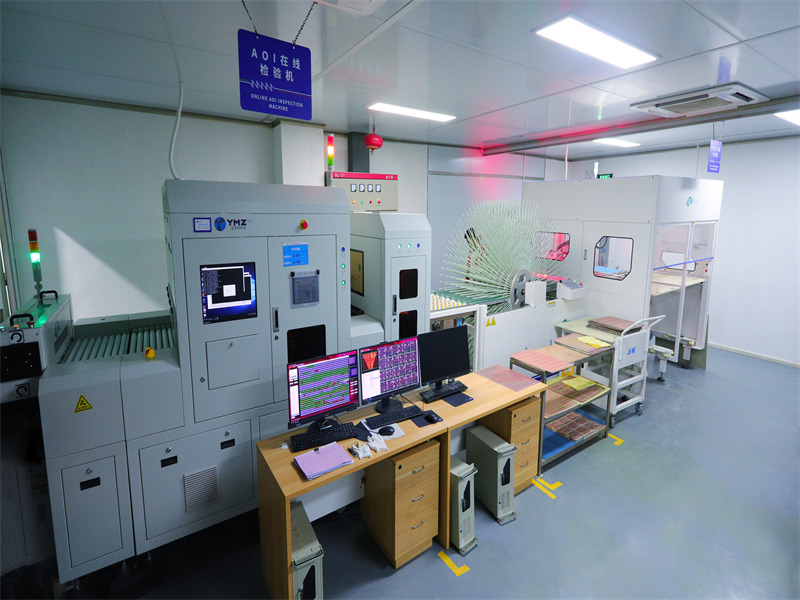

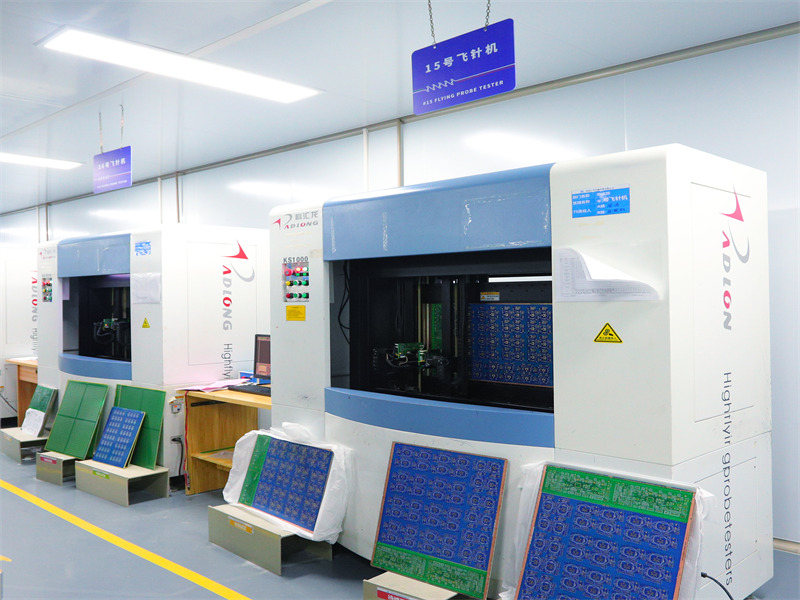

Manual Inspection, Electrical Testing, AOI (Automated Optical Inspection), ICT (In-Circuit Testing), Flying Probe Test, and Functional Circuit Test.

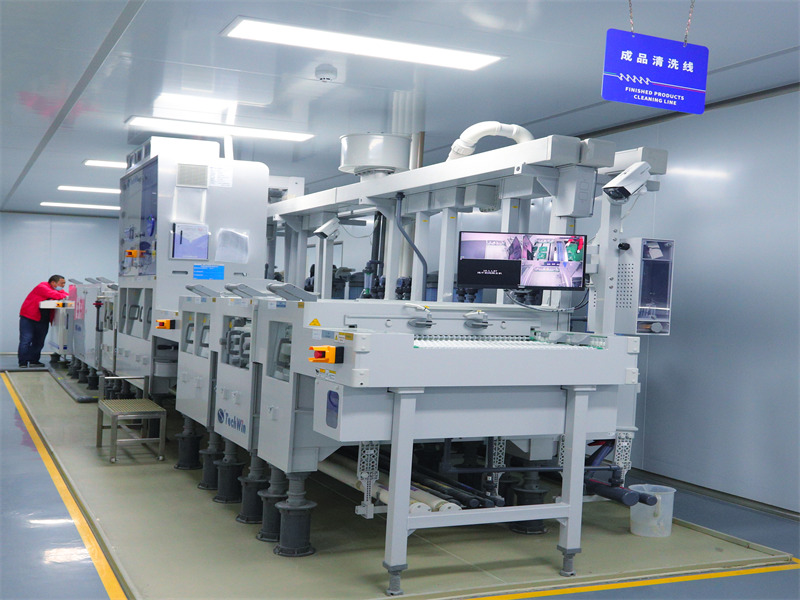

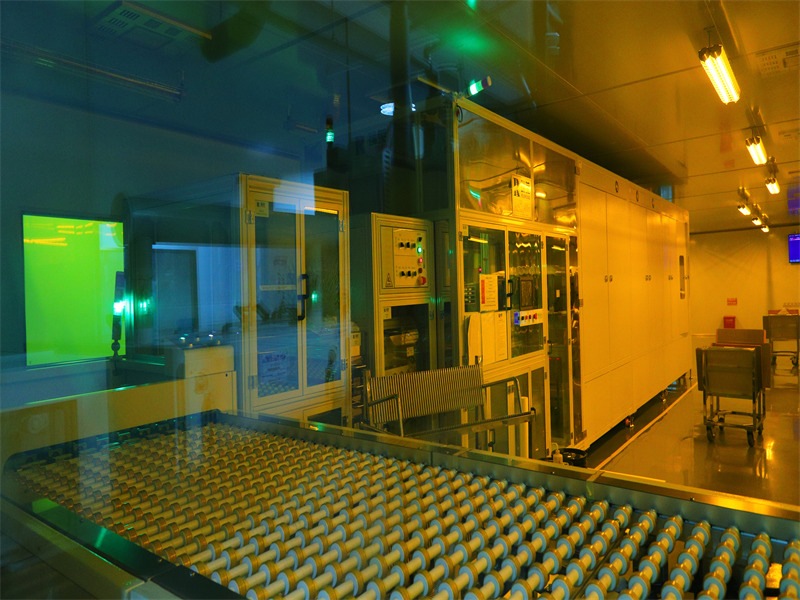

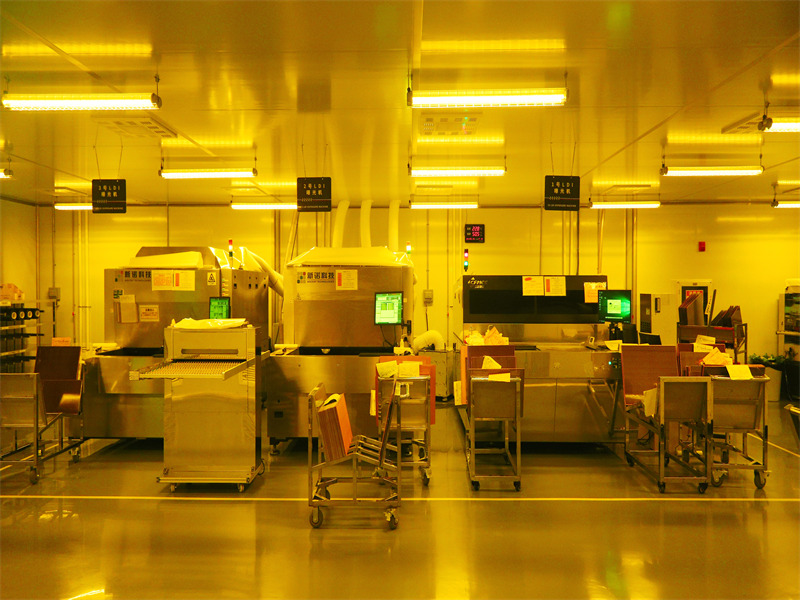

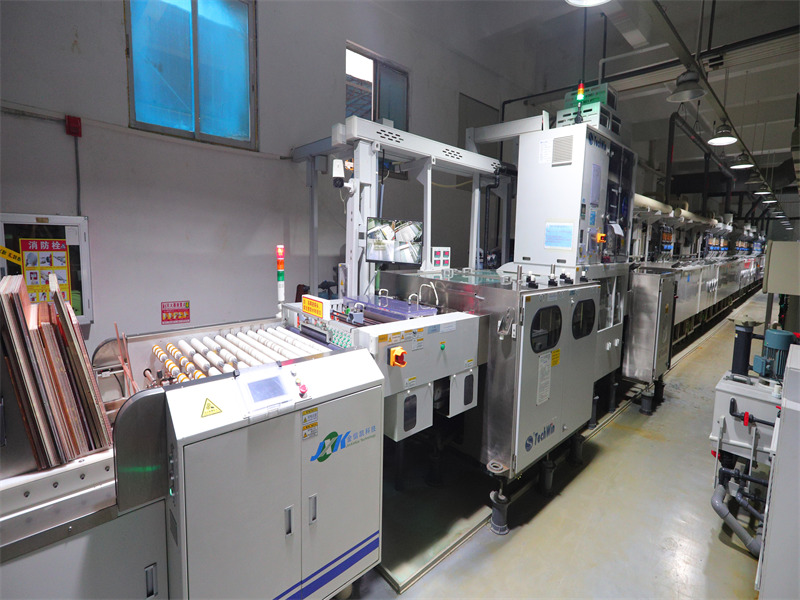

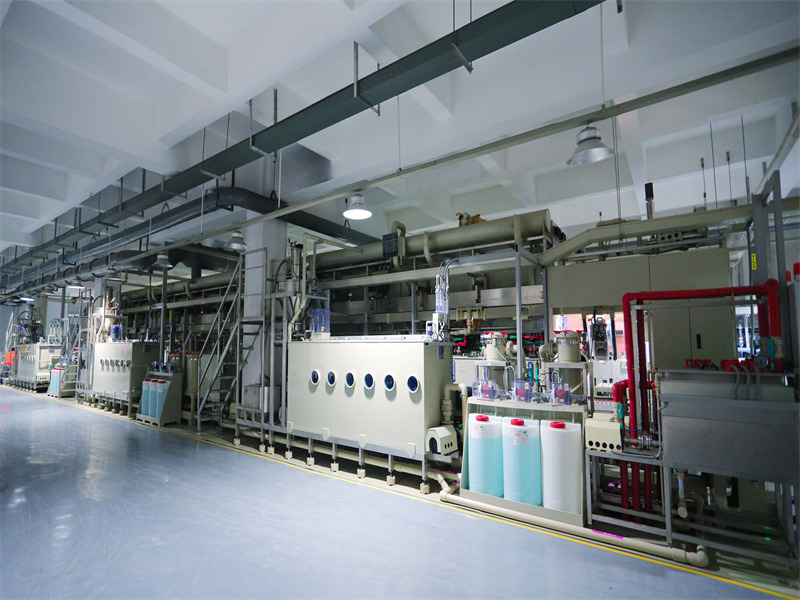

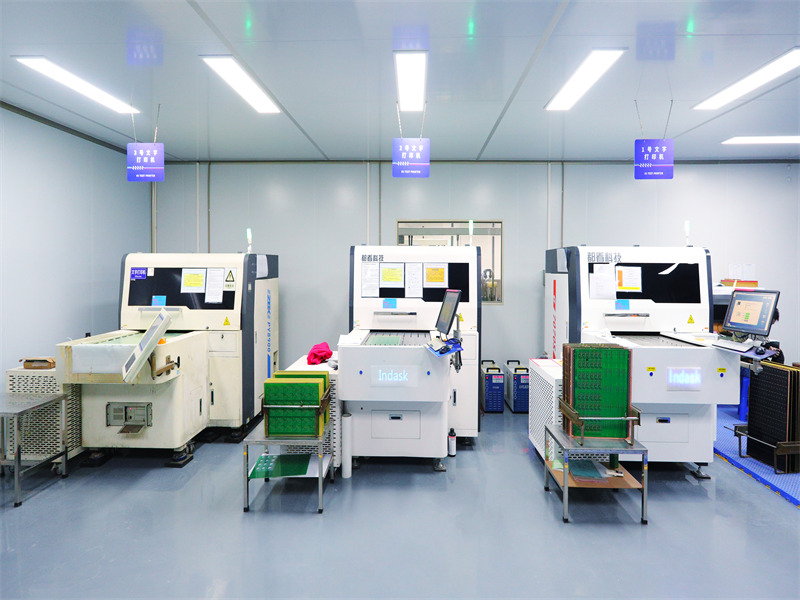

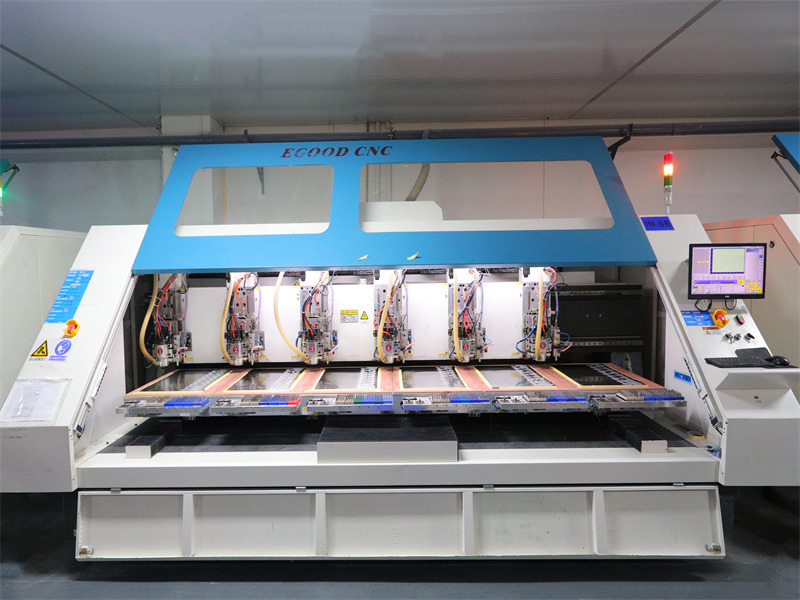

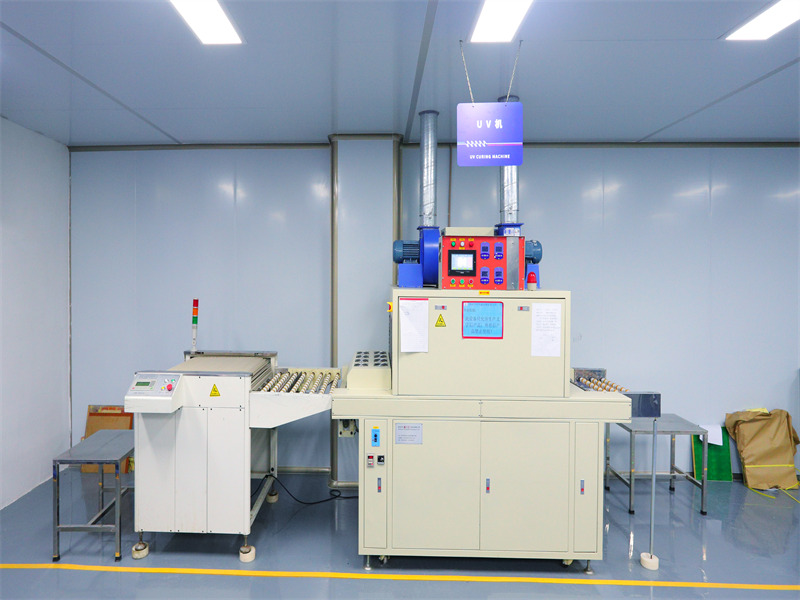

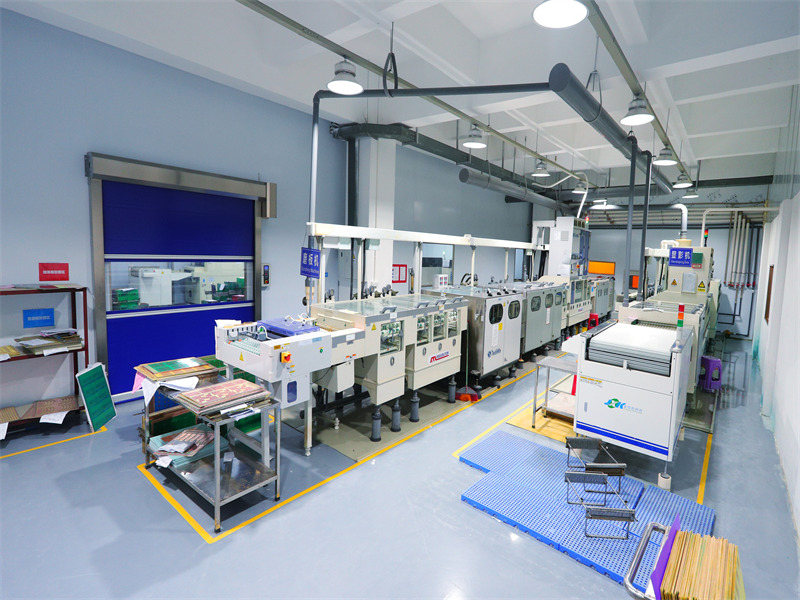

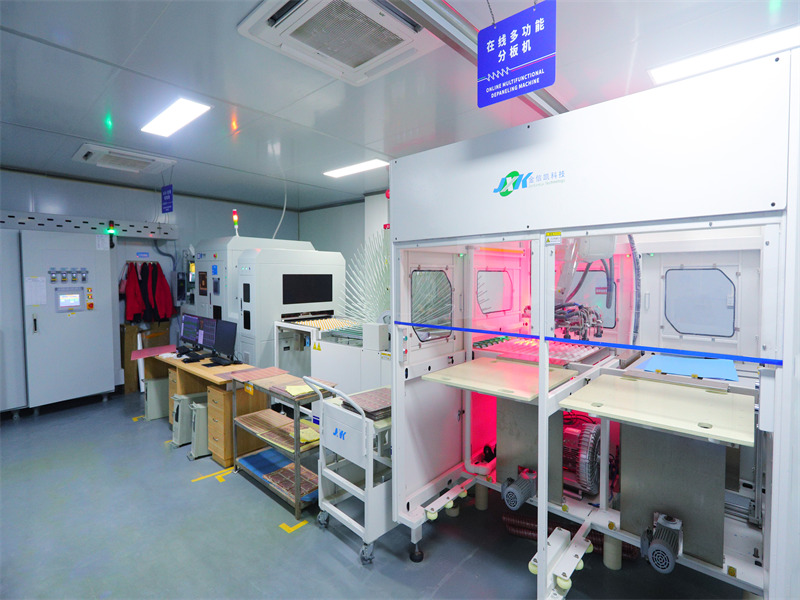

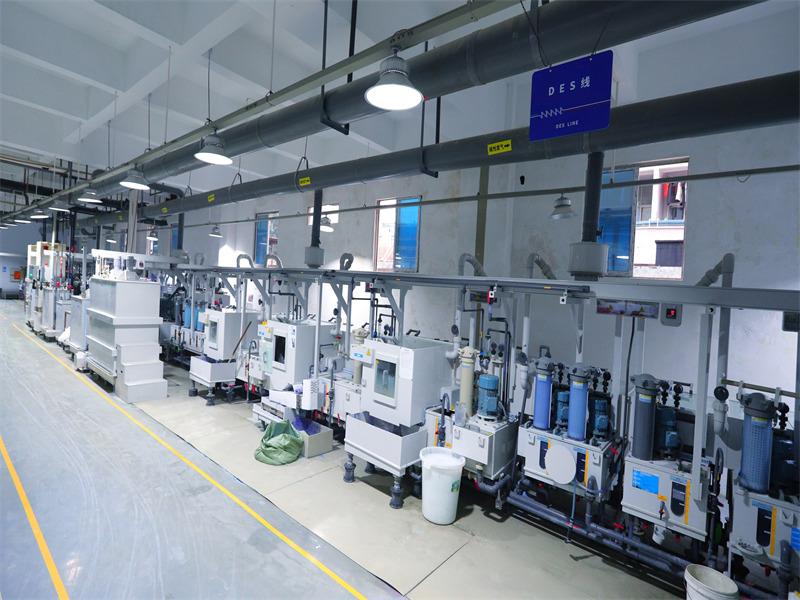

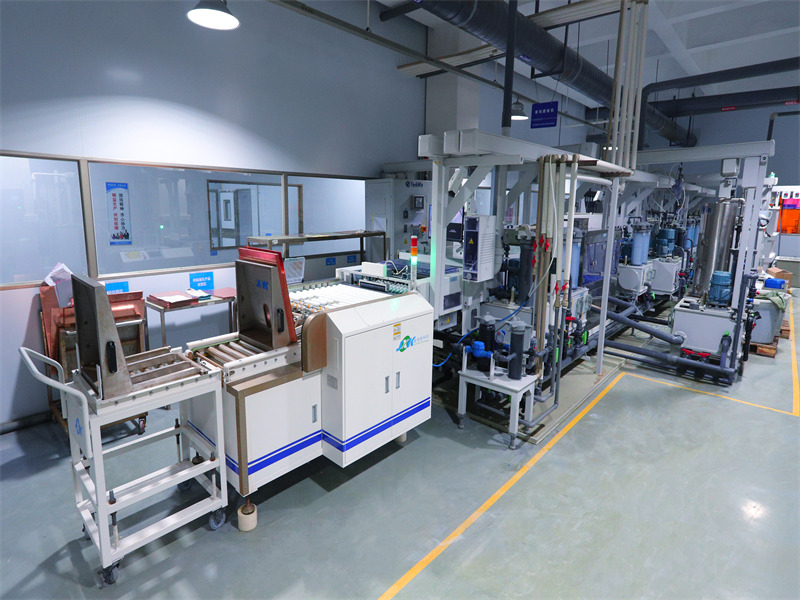

PCB Factory Display
— PCB production capacity can reaching a monthly capability of 200,000 square meters —
Our PCB Manufacturing Capability
| Item | Specifications |
| Layer | 1-64 layer |
| Materials | FR4, High Frequency, Halogen-free, High Speed, High Tg, Rogers, Metal Core, Ceramic, Rig-flex,etc. |
| Finished Copper Thickness | 12OZ |
| Board Thickness | 0.2 to 6.0mm |
| Board Thickness Tolerance | ±0.1mm |
| Min.Track Width | 3mil |
| Min.Trace Space | 3mil |
| Min. PTH Hole | 0.1mm |
| Min. NPTH Hole | 0.075mm |
| Drilling Bit Size(CNC) | 0.15 to 6.50mm |
| Finished Hole Dimension | 0.1 to 6.0mm |
| The Hole Tolerance | ±0.05mm |
| Hole Position Tolerance | ±0.05mm |
| Aspect Ration | 17:1 |
| Max. Panel Dimension | 646*1200mm |
| Solder Mask | Green, Blue, Red, Black, White,Yellow, etc. |
| Impedence Control | ±5% |
| Surface Finishing | HASL(Lead Free),Gold finger Immension Gold, OSP, Immension Siver, etc. |
| Special Requirement | Buried&Blind Holes, Counter Sink, Counter Bore etc. |
Email :
Sales@dqspcba.com
We are committed to building a world-leading brand in circuit board assembly services, delivering the most reliable products and support to our customers. Our goal is to set a benchmark in the industry and actively contribute to the advancement of the electronics sector.
