SMT Assembly
GuangDong DQS Electronic Group offers strong SMT assembly capabilities and comprehensive DFM & DFA checks for both pre- and post-production design stages, helping reduce costs during pilot production. With 13 state-of-the-art SMT production lines, we are equipped to manufacture full-cycle electronic products of various complexity levels.
Our production is supported by some of the industry’s most advanced equipment, including:

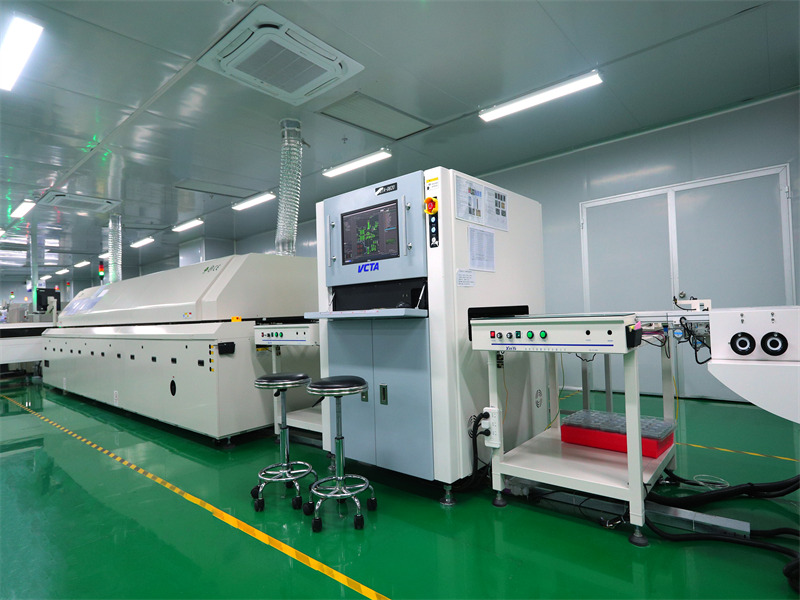

• Ten-zone nitrogen reflow ovens

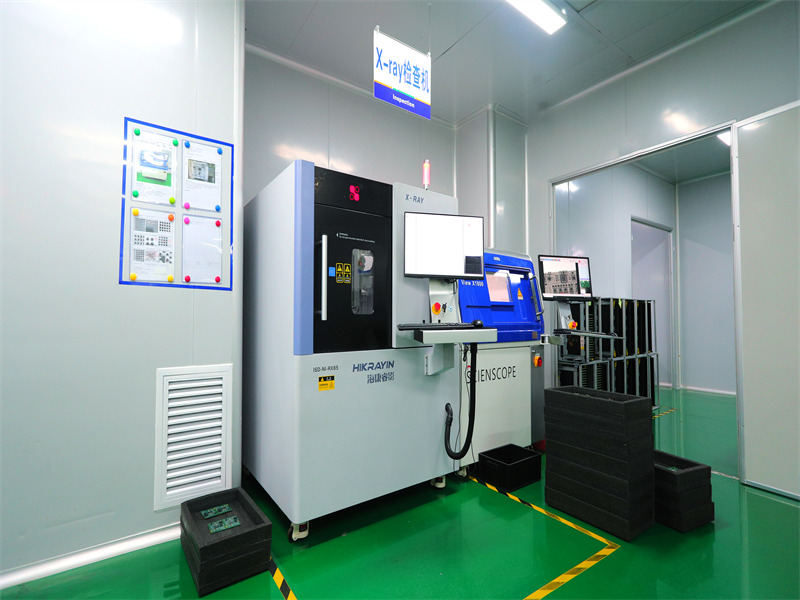

• X-ray inspection systems
• Wave soldering stations
• BGA soldering stations
We are committed to delivering high-quality products that meet the highest standards — efficiently, reliably, and competitively.
|
SMT Capability |
|
|
SMT Line |
13 Lines |
|
Points |
5 Million Points/day |
|
SMD Outline Min Size |
0.3* 0.2mm |
|
SMD Outline Max Size |
200mm* 125mm |
|
Smallest Package |
01005 |
|
Package Type |
QFP、SOP、SOJ、SOIC、CSP、BGA、uBGA,etc |
|
Component Thickness |
T≤15mm |
|
Min Pin Space |
0.3mm≤ Pitch<0.4mm |
|
Min Ball Space |
0.3mm≤ Pitch<0.5mm |
|
Types of PCBs Placed |
PCB Rigid (FR-4, metal substrate)/Flexible PCB (FPC)/Rigid-flex PCB/Aluminium Substrates |
|
Appliance |
Industrial Control/ Communication/ Medical/Consumer Electronics/Automotive/Security |
SMT Workshop Error Prevention System
