What is Box Build Assembly?

Box Build Assembly​ (often just called "Box Build") is the final stage of electronic manufacturing where all the individual components, sub-assemblies, and the main printed circuit board (PCB) are integrated into a complete, functional product enclosure or "box."

Think of it as the difference between having all the parts of a computer (motherboard, power supply, hard drive, wires, case) and actually assembling them into the finished computer tower that you can plug in and use.

A Helpful Analogy: Building a Car

PCB Assembly (PCBA):​ This is like manufacturing the car's engine and all its internal parts.

Box Build:​ This is taking that finished engine, along with the chassis, wheels, seats, and dashboard, and putting them all together into a drivable car. It involves everything from mounting the engine and installing the wiring harness to adding the final trim and doors.

What Does a Typical Box Build Include?

A box build project can range from simple to extremely complex. Here are the common steps and components involved:

1. Enclosure Preparation:​ Modifying the product's case or box. This can include drilling holes, adding ventilation, silk-screening labels, or painting.

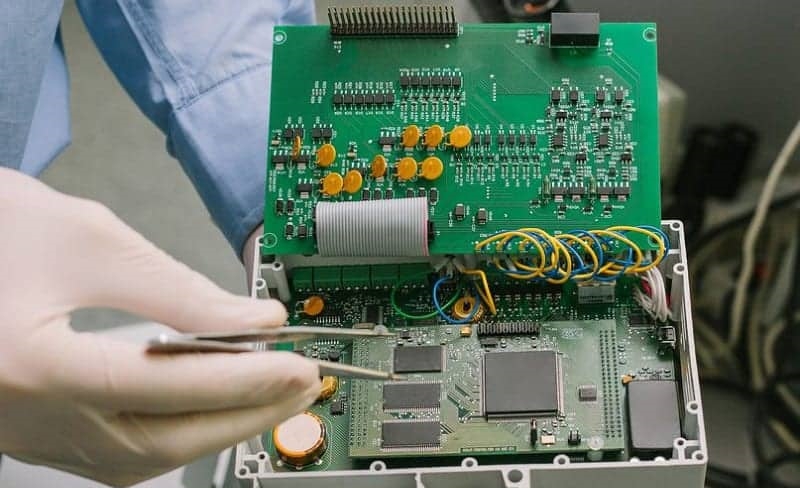

2. Installing the PCB(s):​ Securing the main assembled printed circuit board (and any secondary boards) into the enclosure.

3. Wiring and Cable Harness Installation:​ Adding all the internal wiring that connects the PCB to other components like switches, sensors, motors, and power supplies. This often involves creating custom cable harnesses.

4. Installing Sub-Assemblies:​ Adding other mechanical and electro-mechanical parts, such as:

• Power supplies and transformers
• Fans and cooling systems
• Displays and touchscreens
• Keypads, buttons, and switches
• Connectors (USB, Ethernet, etc.)
• Motors and actuators

5. Software Loading & Firmware Flashing:​ Installing the necessary operating system and software onto the device's memory.

6. Final Assembly:​ Putting all the pieces together, which may include screwing parts in place, snapping components together, and applying adhesives.

7. Testing and Quality Control (QC):​ This is a critical part of the box build. The fully assembled unit is tested to ensure it powers on, functions correctly, and meets all specifications. This can include:

• Power-on testing
• Functional testing (does every button and feature work?)
• Burn-in testing (running the device for an extended period to catch early failures)
• Safety and regulatory checks (e.g., UL, CE)

8. Packaging and Kitting:​ Placing the finished product into its retail packaging, along with all necessary accessories (manuals, cables, power adapters).

Advantages of Using a Single Contract Manufacturer (CM) for Box Build

Companies often outsource box build to an Electronics Manufacturing Services (EMS) provider. The key benefits are:

• Single Point of Responsibility:​ You have one partner managing the entire process from PCB fabrication to final packaged product. This simplifies communication and accountability.
• Supply Chain Simplification:​ The EMS provider manages the sourcing of all components (not just electronic parts, but also enclosures, cables, screws, etc.), reducing complexity for the client.
• Cost Efficiency:​ A skilled CM can optimize the assembly process, reduce labor costs, and minimize material waste.
• Faster Time-to-Market:​ With expertise in assembly line processes, a CM can assemble and test products much faster than a company setting up its own production line.
• Higher Quality and Consistency:​ Professional EMS providers have rigorous quality control systems in place to ensure every unit that leaves their facility works perfectly.

Examples of Box Build Products

Almost any consumer or industrial electronic product is a result of a box build process:

• Smartphones and tablets
• Laptop and desktop computers
• Network routers and servers
• Medical devices (e.g., patient monitors, infusion pumps)
• Industrial control systems (PLCs)
• Automotive infotainment systems
• Home appliances like smart thermostats

Summary

In essence, Box Build Assembly is the process of transforming a collection of electronic and mechanical components into a fully integrated, tested, and packaged final product.​ It's the crucial last step that turns a circuit board into a sellable device.
